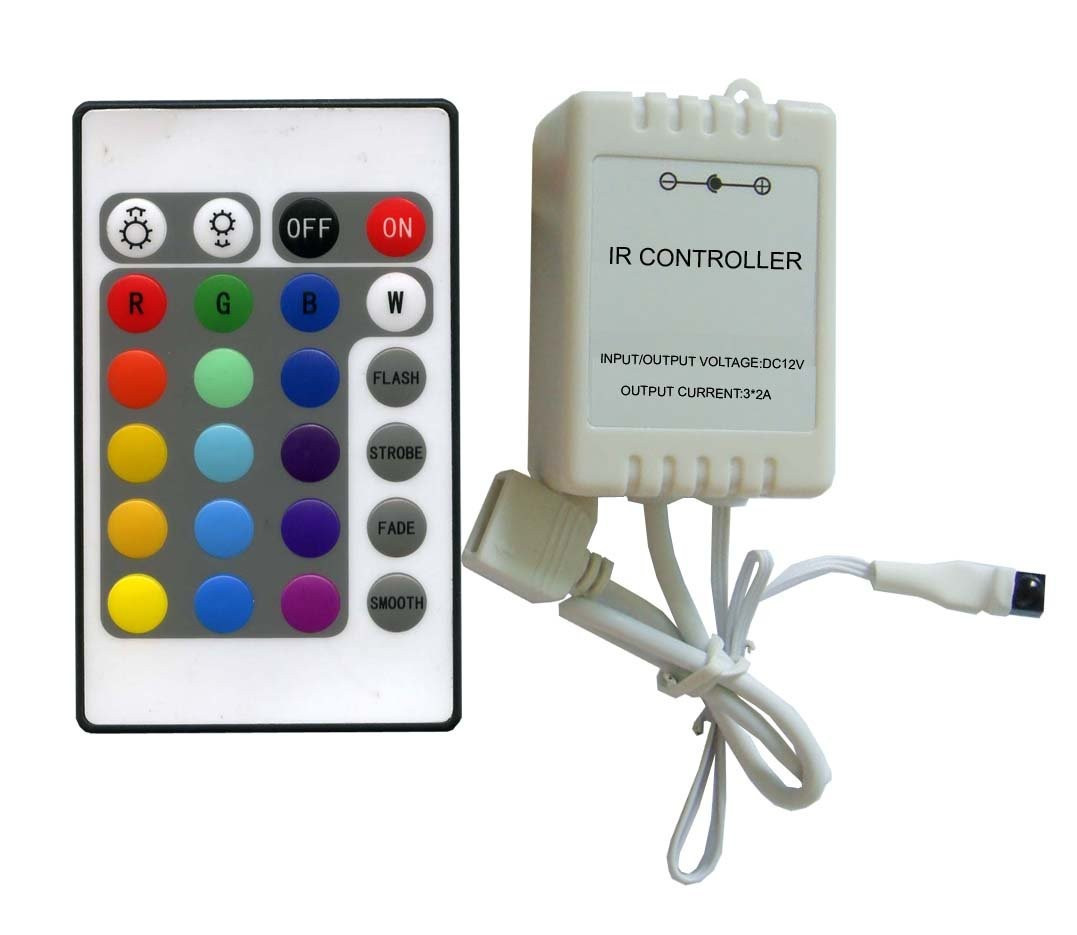

LED Controller 24 Button IR Remote 3 Channel RGB Reduced

Application:

Control flexible and rigid LED Lights. Suitable for 5050, 3528 or 335 LED strips and bars.

RGB or 3 x Single colors.

Specifications:

1. Model: VL-CON-IR24B-3CH-12V

2. Working temperature:-20-60°C

3.Supply voltage :DC12V-24V

4. Size : L63 x W35 x H23mm

5. Weight: 50g

6. Output: Three CMOS drain-open output

7. Connecting Mode : Common anode

8. Rated load current: 2A per channel.

9.  Static power consumption: <1W

10. Output power: 12V/72W

Control method:

24 button IR remote.

Brightness +	Brightness-	Off	On
Static red	Static green	Static blue	Static white
Static orange	Static pea green	Static dark blue	Flash
Static dark yellow	Static cyan	Static brown	Strobe
Static yellow	Static light blue	Static pink	Fade
Static straw yellow	Static sky blue	Static purple	Smooth

 WARNING:

1. Supply voltage of this product is DC12-24V. Note: Higher voltage would most likely destroy it.
2. Lead wire should be connected correctly according to colors that connecting diagram offers.
3. Warranty for this product is one year. In this period we guarantee replacement or repairing of the item. Warranty void in case of physical damage and current overload.
