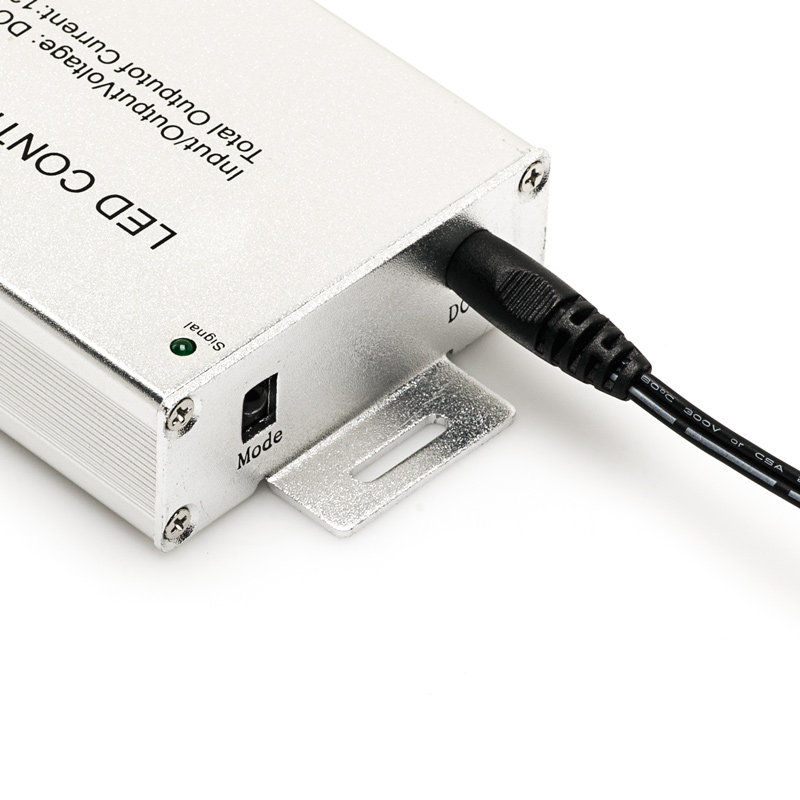

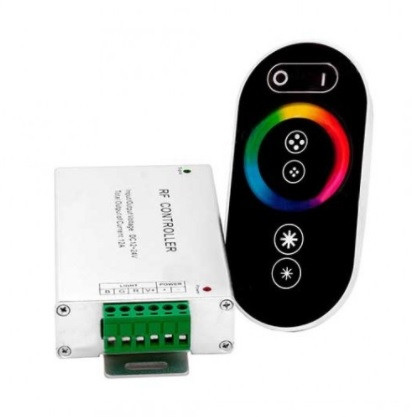

RGB LED Controller with Touch RF Remote 3 Channel

Application:

Control flexible and rigid LED Lights. Suitable for 5050, 3528 or 335 LED strips and bars. RGB or 3 x Single colors.

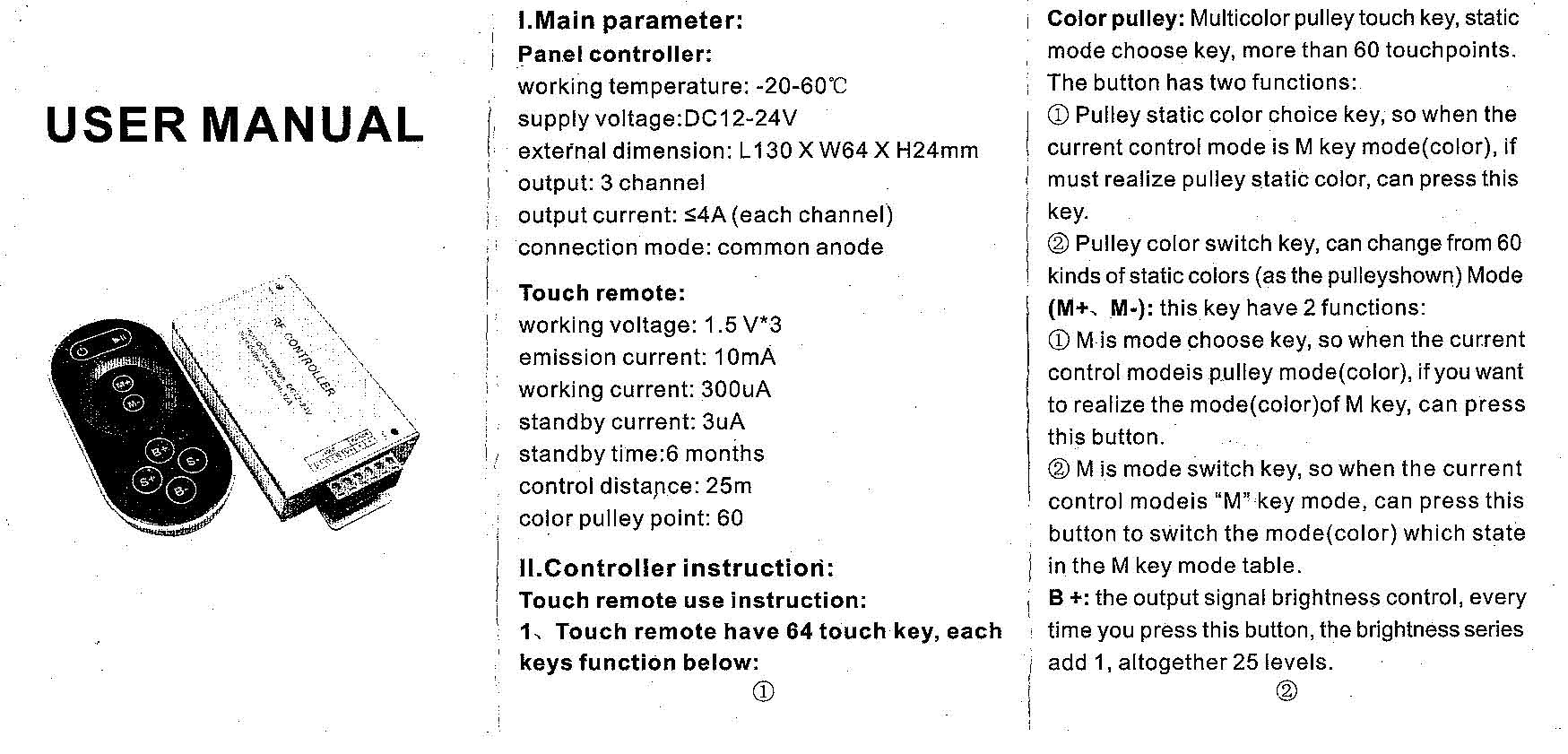

Specifications:

1. Model: LN-CON-TRF8B(H)-3CH-LV

2. Working temperature:-20-60°C

3. Supply voltage :DC12V-24V

4. Size : L130 x W64 x H24mm

5. Weight: 214g

6. Output: Three CMOS drain-open output

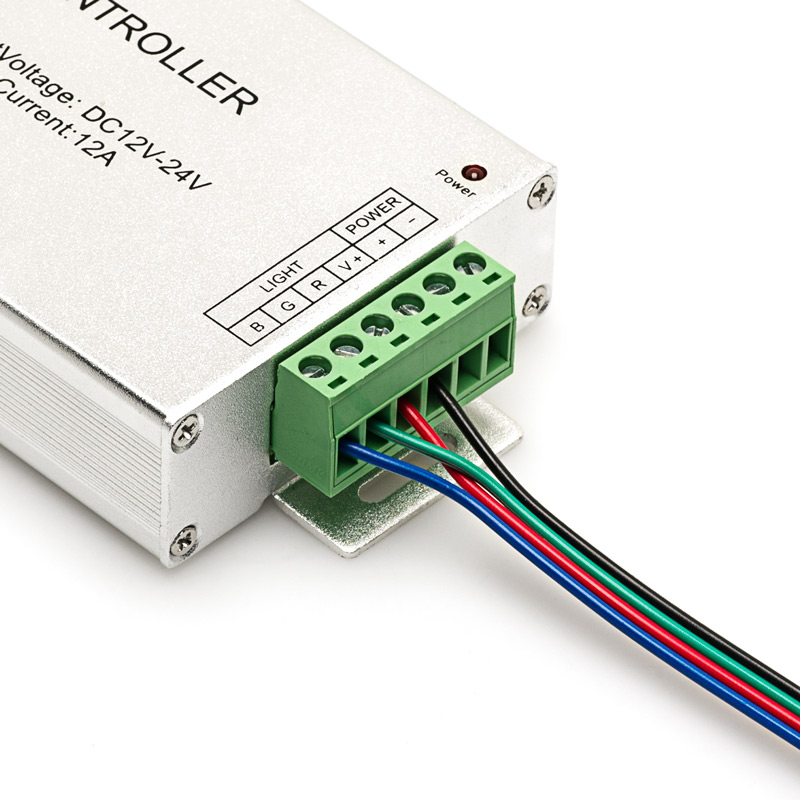

7. Connecting Mode : Common anode

8. Rated load current: 4A per channel.
