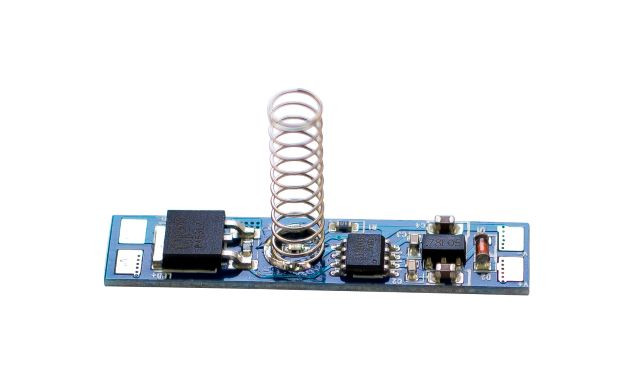

Touch Dimmer ON Off Switch

 PWM SENSOR/TOUCH DIMMER is suitable for aluminium profiles with plastic diffuser. Inner profile height 6-20 mm.

The touch dimmer can be installed behind profile's diffuser between the LED strip and DC power. The dimmer has 5 steps dimming function (0%, 25%, 50% and 100%).

The sensitive area is indicated by a LED.

Suitable for LED Profile VL-PA06-O, VL-PA07-O, VL-PA01-O, VL-PA09-O, VL-PA02-O,  VL-PA07-O-2m, VL-PA06-O-2m,  and other LED profiles with inner profile height 6-20 mm.

- indoor: interior design, furniture (kitchen cabinets, closets), stairs, exhibitors, , advertisement, hotels, work stations, (hardly accessible – shaded spots)

- indoor and outdoor (profile is not waterproof, not to be applied if directly exposed to weather conditions)

-Width: 10mm
-Voltage: 12V-24V
-Length: 50mm.
-Function: Off/0%, 25%, 50%, 75%, 100%
-Current: Max 5 Amps.
-Load: 60W (12V); 120W(24V)
