Mean Well HLG-320 LED Driver IP67 24V

The Mean Well HLG-320H-24 is a powerful constant voltage LED driver designed for large-scale LED applications. Built with a fully isolated aluminium housing, active PFC, and IP65/67 protection, it ensures long-lasting, safe, and efficient performance in both indoor and outdoor environments.

✔ 24V DC constant voltage output – up to 321W (13.34A)
✔ Universal AC input (full range) with active PFC
✔ Fully isolated aluminium case for durability and superior heat dissipation
✔ Ingress protection IP65/67 – suitable for dry, damp, and wet locations
✔ Supplied with SAA-approved 1.8m flex & plug
✔ Certified to international safety and EMC standards
✔ Ideal for large LED strip installations, signage, and industrial lighting projects

Specifications

Model: HLG-320H-24

Output Voltage: 24V DC

Output Current: 13.34A

Output Power: 321W

Input Voltage: 90–305V AC (full range, 47–63Hz)

Power Factor: Built-in active PFC

Case Type: Fully isolated aluminium enclosure

IP Rating: IP65 / IP67 (depending on wiring configuration)

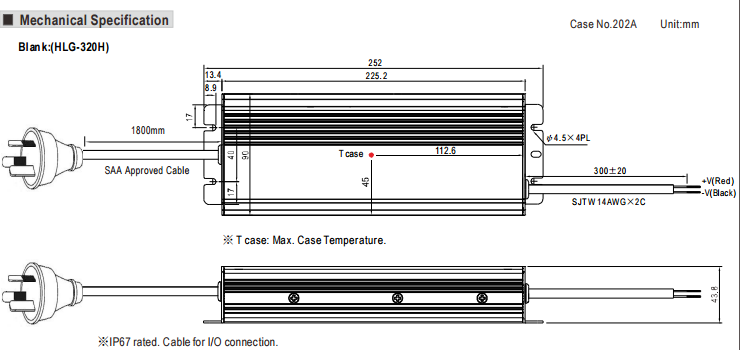

Dimensions: 252 × 90 × 43.8 mm

Weight: 2.5 kg per unit

MTBF: 157,100 hrs (MIL-HDBK-217F, 25°C)

Safety Compliance: EN61347-1, EN61347-2-13, UL8750, EN62384

EMC Compliance: EN55015, EN61000 series

Connection: SAA-approved 1.8m flex & plug

A durable, high-performance 24V 321W LED driver from Mean Well, perfect for commercial and industrial LED lighting projects that require maximum reliability and efficiency.
