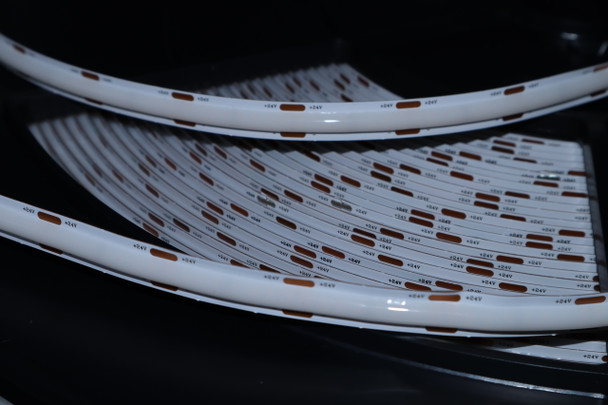

SMD2022 SmoothLine (12/24V - 10/14.4W) Non-Waterproof

The price is per 1 meter of LED strip. 1 quantity = 1 meter. Up to 30 meters available in a single reel.

SmoothLine SMD 2022 LED Strip — professional-grade strip with seamless, dot-free light, high efficiency, and CRI 90+ colour accuracy. Ideal for under-cabinet, furniture, retail, and architectural lighting.

Key Features

• Seamless, dot-free illumination
• High colour rendering (CRI 90+)
• Cuttable every 2.5 cm
• Available in 12 V and 24 V versions
• Self adhesive tape for easy mounting

Available Colors

• Cool White 6000 K
• Natural White 4000 K
• Warm White 3000 K

Specifications

• LED Model: SMD 2022
• Lifespan: > 50 000 hours
• Operating Temp: −20 °C to 50 °C
• IP Rating: IP20 (non-waterproof)
• Viewing Angle: 180 °
• Self adhesive tape

12 V Version (10 W/m)

• Width: 8 mm × Height: 2 mm
• Cuttable every 2.5 cm
• Input Voltage: DC 12 V
• Power: 10 W per meter
• Max single-end run: 5 m

24 V Versions (10 W / 14.4 W / 17 W per m)

• Width: 10 mm × Height: 2 mm
• Cuttable every 2.5 cm
• Input Voltage: DC 24 V
• Power Options: 10 W / 14.4 W / 17 W per meter
• Max single-end run: 10 m

Powering Longer Runs

• For lengths beyond 5 m (12 V) or 10 m (24 V), power the strip from both ends to maintain even brightness.
• When powered from both ends, the 24 V version can reach approximately 10 m + 10 m + ≈ 3 m extra — giving up to ≈ 23 m total with consistent light.
• Use adequately sized cable to reduce voltage drop and maintain brightness.

Selecting the Right LED Driver

Use our Power Supply Calculator below to automatically find the correct driver for your strip length and wattage — no manual calculations needed.

Need Help or a Custom Setup?

We can solder custom wires directly to your LED strips, prepare pre-cut lengths to your measurements, and supply the correct power supply — fully tested and ready to install. We also offer complete ready-to-install kits that include LED strip + aluminium channel + controller + power supply, with the strip already professionally installed into the channel. Our team can handle all calculations and assembly for you — simply call us or get in touch online for quick assistance.
