Description

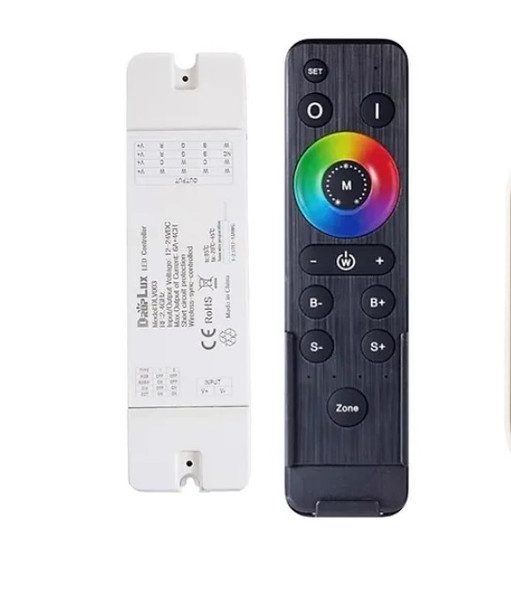

This advanced LED controller uses PWM (Pulse Width Modulation) technology to provide smooth, precise control of constant voltage LED lights such as strips, modules, and strings. With a 4-in-1 design, it supports single color, CW+WW (dual white), RGB, and RGBW LEDs. The RF remote offers intuitive control of brightness, colors, and dynamic effects, making it ideal for flexible lighting installations.
✔ 4-in-1 Controller – controls DIM, CCT, RGB, and RGBW LED lights
✔ Maximum Load: 6A per channel, 4 channels (288W @ 12V / 576W @ 24V)
✔ Input Voltage: DC 12V or 24V constant voltage
✔ Memory Function – recalls the last used color or mode after power-off
✔ Mesh Network – sync multiple controllers wirelessly for static and dynamic modes
✔ 4-Zone Control – control up to 4 zones separately or together with a single remote
✔ RF Remote Control – no line-of-sight needed, works through obstacles
✔ Precise Adjustments – 1024 static colors, 1024 brightness levels, 100 speed levels
Controller Specifications
Technology: PWM constant voltage
Input Voltage: DC 12V / 24V
Channels: 4-channel output (common V+ and 4 outputs)
Max Load: 6A per channel (24A total)
Max Power: 288W (12V) / 576W (24V)
Functions: DIM / CCT / RGB / RGBW
Memory: Saves last mode/color after power cycle
Network: Wireless sync (mesh control across multiple receivers)
RF Remote Specifications
Functions: DIM, CCT, RGB, RGBW, RGB+CCT control
Power Source: 2 × AAA batteries (not included)
Control Range: Up to 30m (RF, no line-of-sight required)
Color Control: 1024 static colors
Brightness Control: 1024 dimming levels
Speed Adjustment: 100 levels for dynamic effects
Zone Control: 4 zones (individual or group control)
Coding: Supports batch operation for pairing/unpairing controllers
A versatile 4-in-1 LED controller with RF remote, perfect for residential, commercial, and architectural LED projects requiring DIM, CCT, RGB, or RGBW control
