Analogue 1-10V Dimming Switch

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
$15.00
SKU:
VL-PSOSDF-30
Rating:
Shipping:
Calculated at checkout
Current Stock:
12


Product Description

Analogue 1-10VDC Dimming Switch

· Compatible with most Clipsal and HPM Wall Plates

· Dimensions: 25 x 25 x 32mm

  Fits into most standard wall plates.

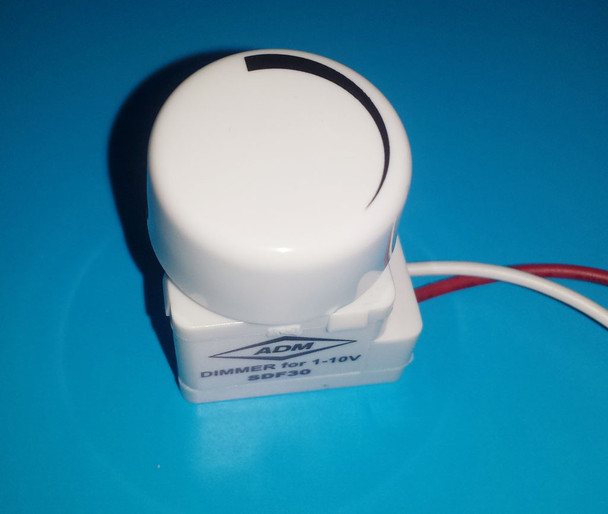

The SDF-30 is an electronic 1-10V dimmer pot, which is compatible with the Mean Well HLG ‘B’ and LPF-D LED drivers.

Being a two-wire pot, all that is required is to connect them to the two dimming wires from the Mean Well LED driver.

No external power supply is required. By wiring the dimming leads in parallel the SDF-30 can be used to control multiple Mean Well LED drivers at the same.

The SDF-30 compatible with Clipsal and HPM (and probably other) switch plates, so they can be mounted in a standard architrave switch fitting.

They do not dim all the way to zero, so a separate on/off switch will be required.

http://www.meanwellaustralia.com.au/news/can-i-use-mean-well-led-driver-wall-plate-dimmer



Warranty Information

2 Years

Find Similar Products by Category


Write your own product review

Product Reviews

  1. A great product, but not what I thought I was buying! 5 Star Review

    Posted by on 28th Jun 2021

    The Power Source D1-10 dimmer is a good quality product. I could have bought one of these locally, but ordered online as the item described on the supplier's website showed this item as model SDF-30 which is much shallower in depth than the D1-10. It would be helpful to have accurate information available prior to ordering.
