Hand-Wave Sensor Switch Surface Mounted

 The S1803 Wired Hand-Swipe Sensor Switch is a modern, touch-free solution designed for convenient and hygienic lighting control. Using advanced infrared sensing technology, it allows you to turn lights on/off and adjust brightness simply by swiping your hand within 50–80 mm of the sensor. Perfect for kitchens, wardrobes, display cabinets, and other applications where effortless and safe lighting control is needed.

Key Features

• Touch-Free Operation: Control your LED lights with a simple hand swipe — no physical contact required.

• Dimming Function: Adjust brightness easily to create the perfect lighting atmosphere.

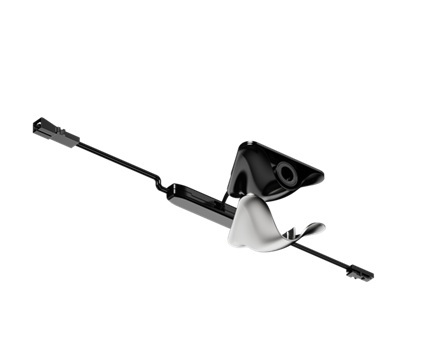

• Flexible Installation: Supports both surface-mounted and recessed installation, making it suitable for various cabinet or furniture designs.

• Modern Design: Available in multiple housing colors (white, black, wood grain, galaxy gray, and fabric-texture finish) to blend seamlessly with most interiors.

• Energy Efficient: Ultra-low standby power consumption (<0.1W).

• Safe & Reliable: Built with high-quality ABS+PC materials for durability and safety.

Technical Specifications

• Product Model: S1803

• Input Voltage: 12/24V DC

• Output Voltage: 12/24V DC

• Maximum Load Power: 30W

• Standby Power Consumption: <0.1W

• Sensing Distance: 50–80 mm

• Sensor Head Material & Color: ABS + PC, black / galaxy grey

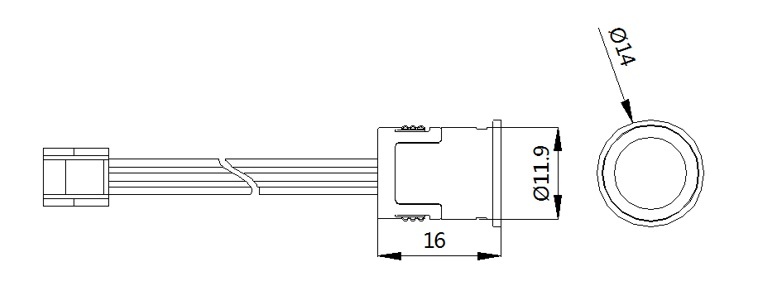

• Dimensions: Φ14 × 16 mm

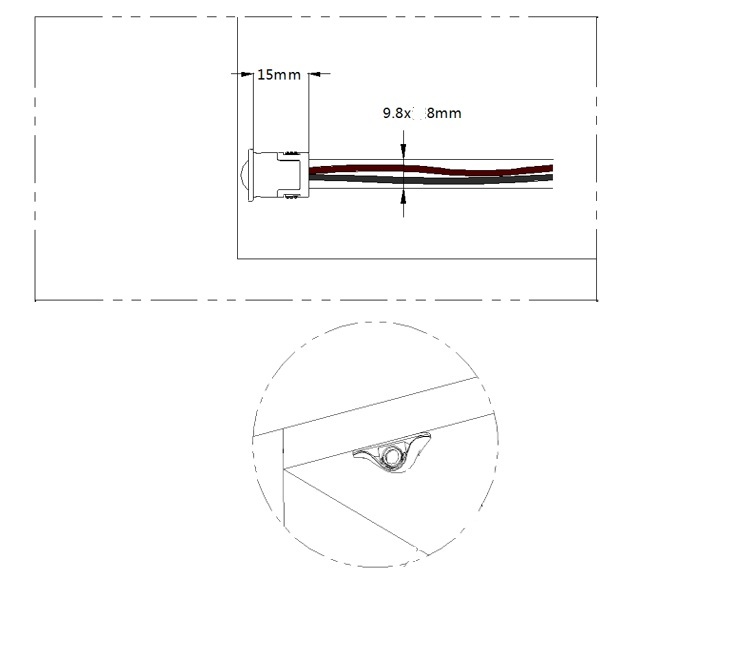

• Cut-Out / Depth Size: Φ12 × 15 mm

• Output Cable: 28AWG, 1500 mm length

⚠️ Use indoors, check parts often, don’t repair yourself, avoid water.
