Intelligent Motion Sensor LED Stair KIT 100cm long Cuttable LED Strip

☀ What It Does

• Lights each step in sequence when motion is detected
• Soft fade-in and fade-out effect
• Up & down PIR motion sensors
• Adjustable turn-off delay — 5 s – 10 min
• Built-in daylight sensor (auto off in bright light)
• Choose exact step count (8 – 72)
• Simple OLED screen for brightness & timer control
• Plug-and-play — no soldering required
• ✔ 1-year warranty

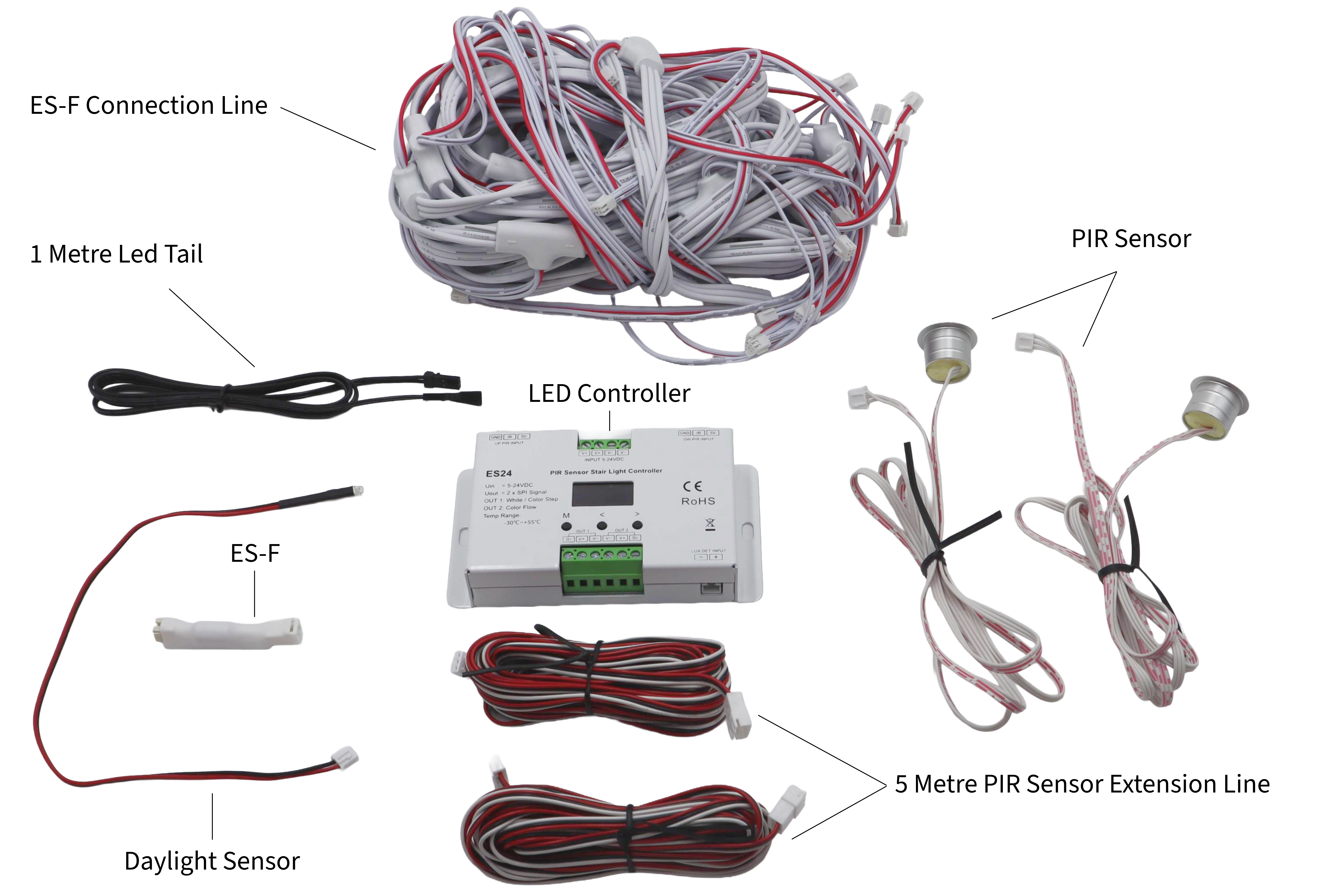

? What's Included

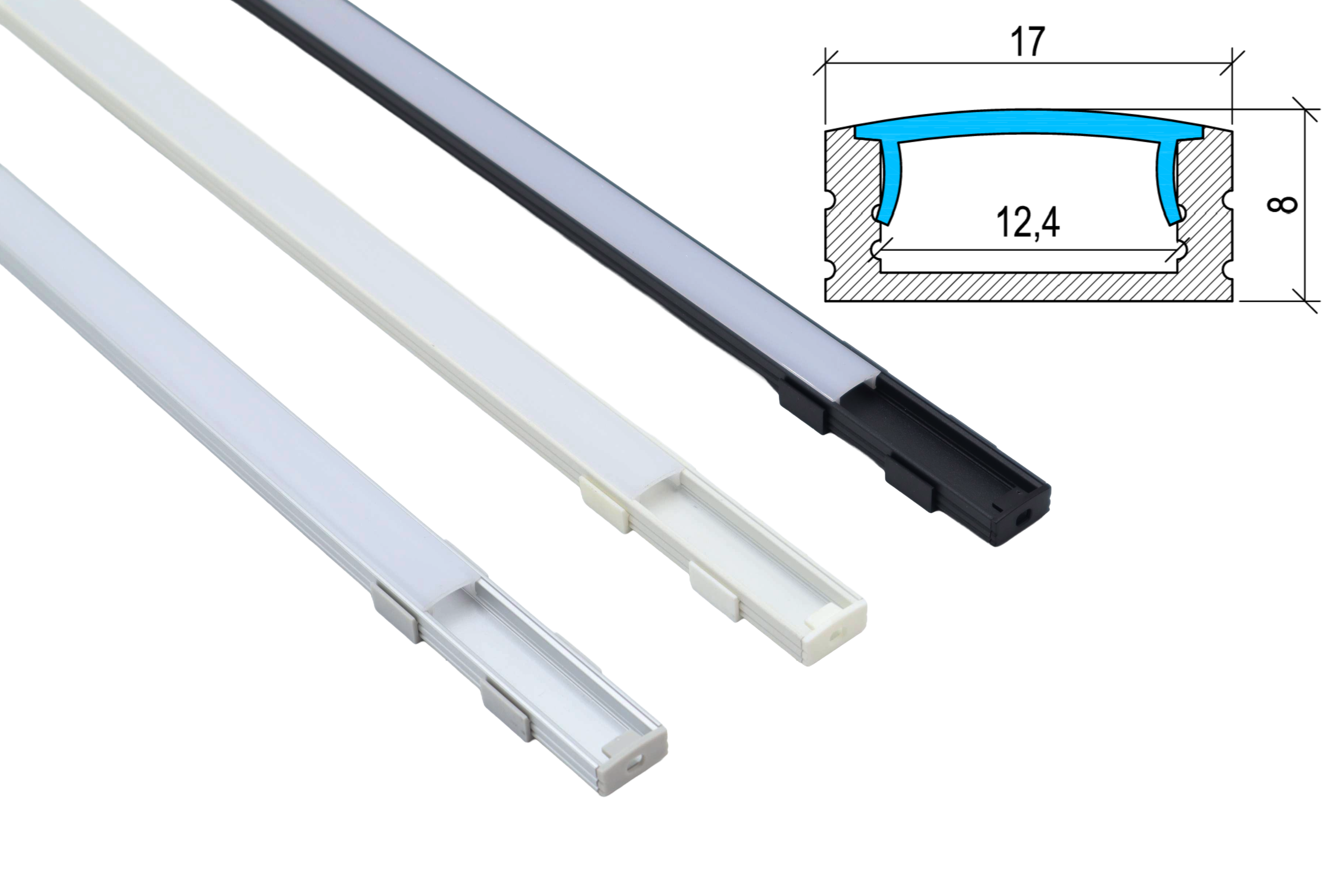

• LED Channels (Customisable): PA07 Surface Mounted Profile — available in Silver, White or Black with Mounting Clips & End Caps. You can choose different profile shapes or finishes to match your staircase design.
• LED Strips (Customisable): 24 V 10 W COB Dotless LED Strip (1 m per step). Brightness and colour temperature (Cool / Natural / Warm White / RGB) can be customised.
• LED Connector Tail: Each strip is professionally soldered with a connector tail that plugs into the controller module. You can choose between a 50 cm or 1 m tail length depending on your installation layout.
• Controller Modules: One per step with built-in link ports. All steps are connected with 35 cm linking cables for perfectly spaced alignment along the staircase.
• PIR Motion Sensors: Top and bottom sensors included (1–1.5 m mount height recommended).

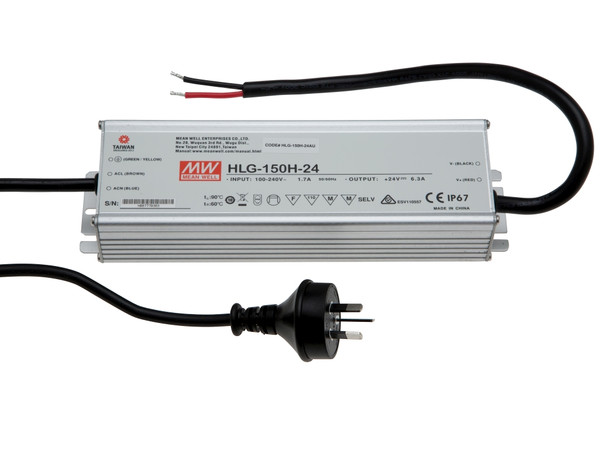

• Power Supply: Calculated and supplied based on your total step count and LED type.
• Extension Cable (Optional): 3 m cable for controller placement flexibility between the main controller and first step.

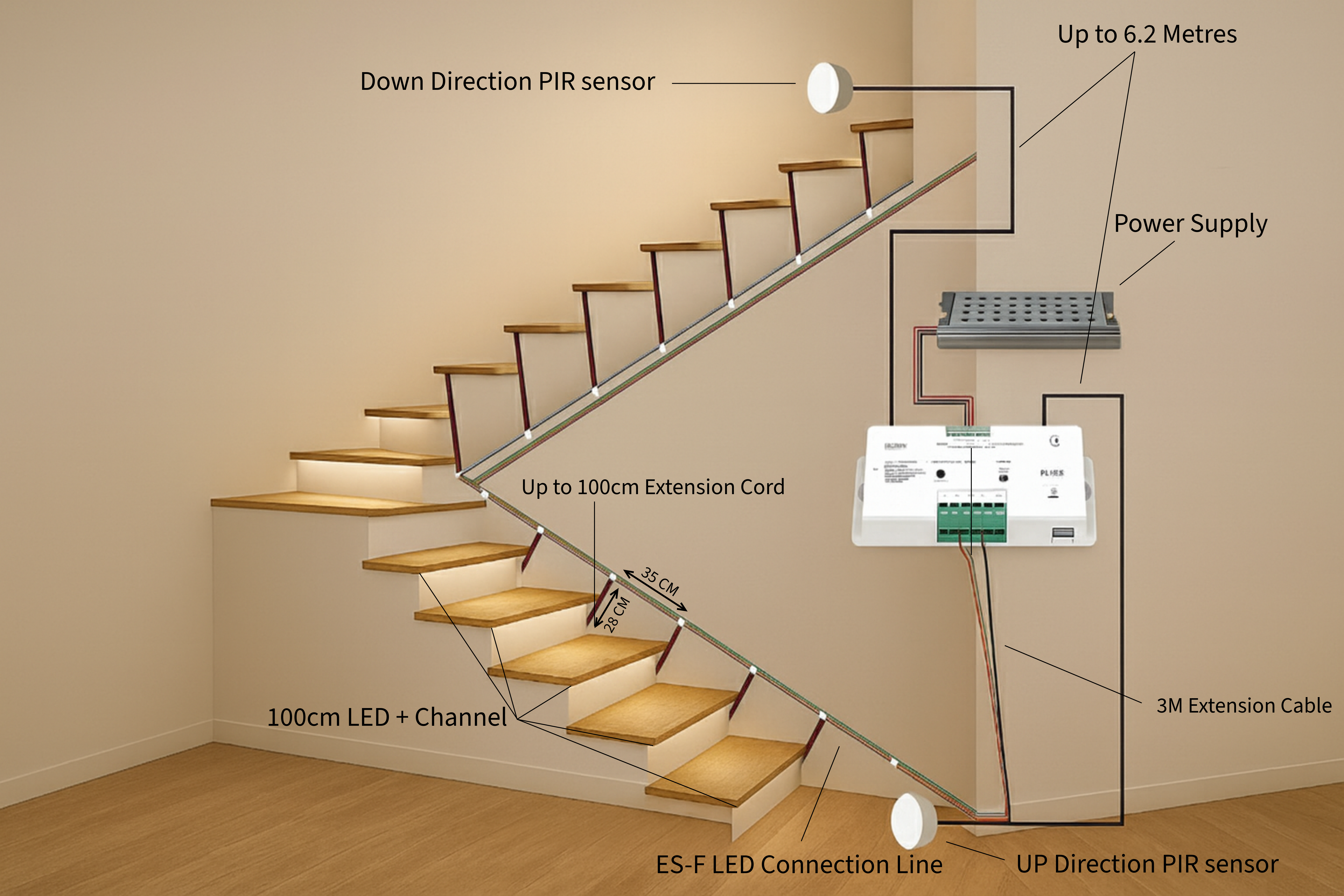

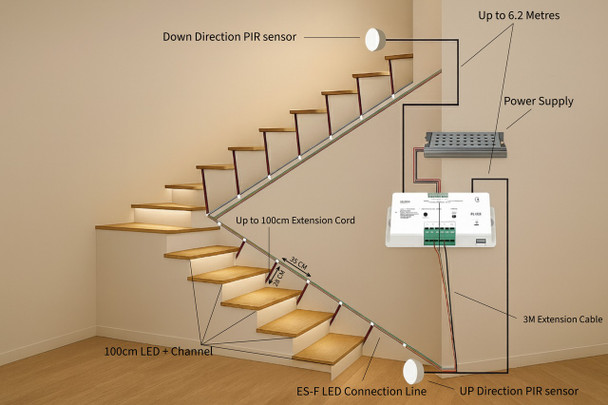

⚙ Easy Setup

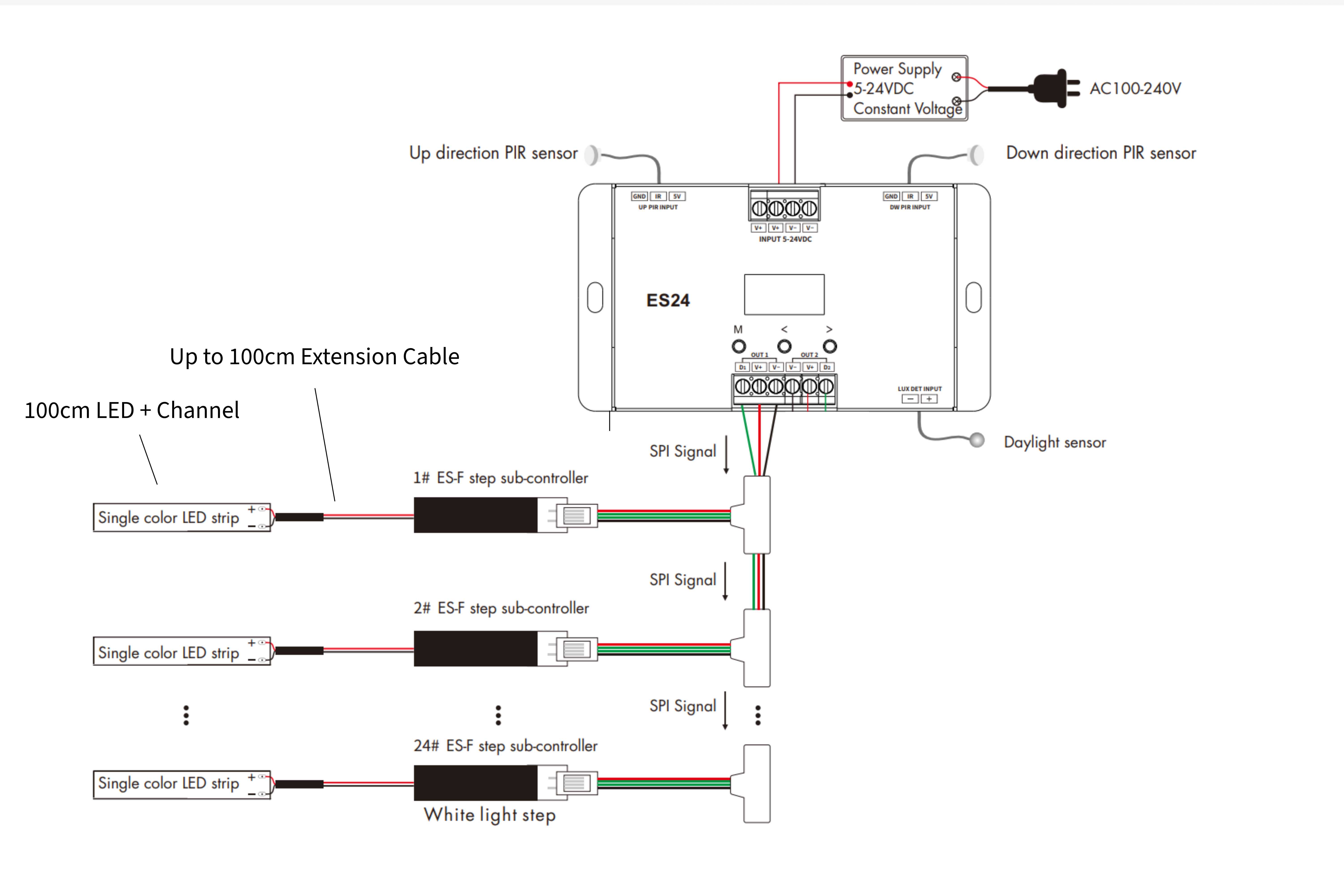

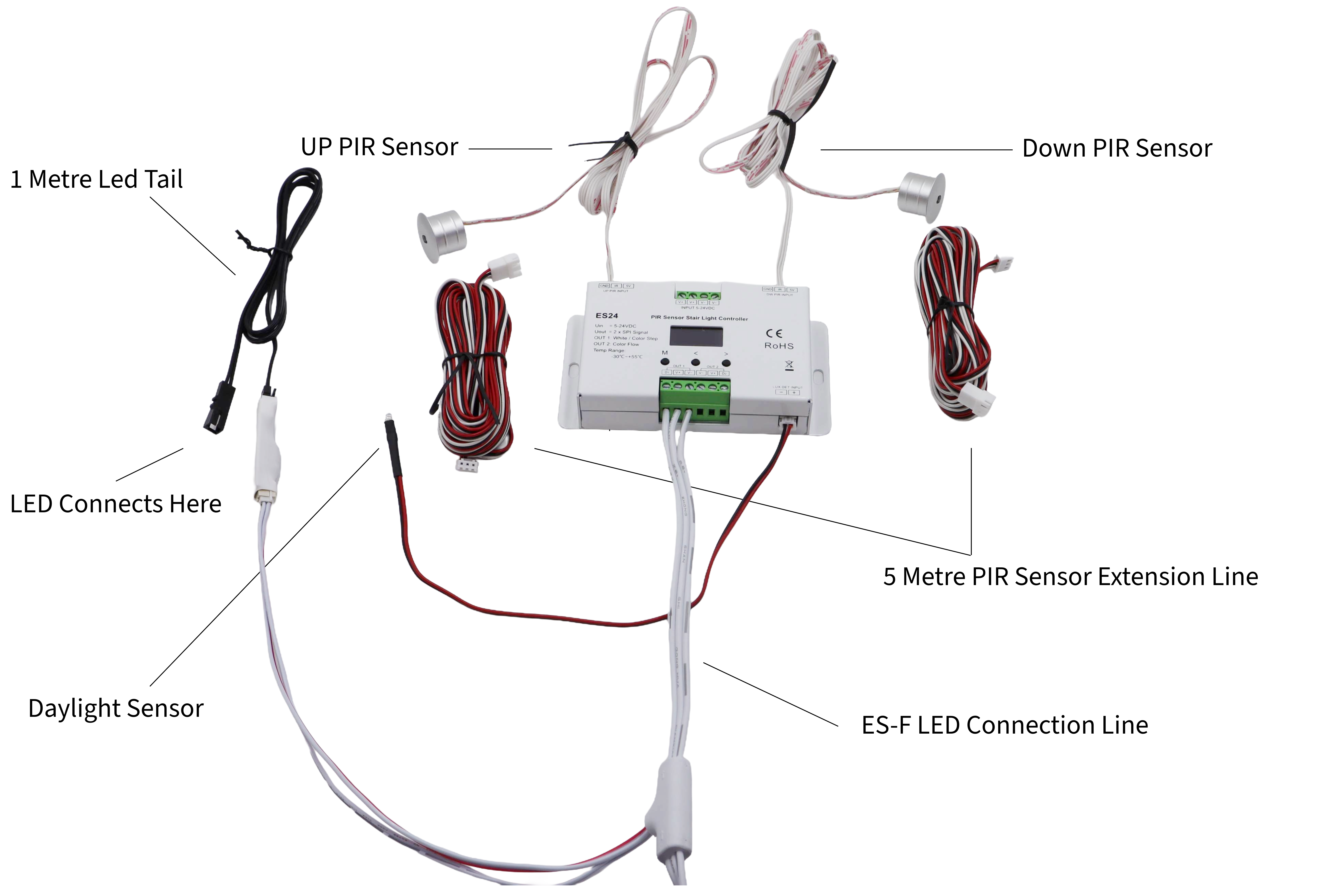

• Plug all modules in sequence — each step connects with 35 cm linking cables.
• Connect motion sensors at the top & bottom of your staircase.
• Attach LED channels and strips — no soldering or electrical work required.
• Power up the controller using the supplied power supply.
• All settings (brightness, fade speed, delay, sensor sensitivity) are adjustable via the OLED screen.

⚙ Technical Info

• Input 5 – 24 V DC (constant voltage)
• Power up to 480 W / 20 A max
• Operating Temp −30 °C – +55 °C
• Protection IP20 (indoor use)
• Certifications CE / EMC / EN 62368-1
• Warranty 1 Year

✂ Custom Options

This kit is extremely customisable to fit your exact needs. We can modify:

• ANY LED strip — choose brightness, colour temperature or RGB options
• ANY channel/profile — different sizes, shapes or finishes
• ANY length — custom cable lengths and strip sizes
• Extra steps — support for 8 to 72 steps
• Pre-configuration — brightness, delay & sensors set before shipping

Contact us to discuss your specific requirements — our team will help create the perfect solution for your staircase.
