Application:
Control flexible and rigid LED Lights. Suitable for 5050, 3528 or 335 LED strips and bars. RGB or 3 x Single colors.
Specifications:

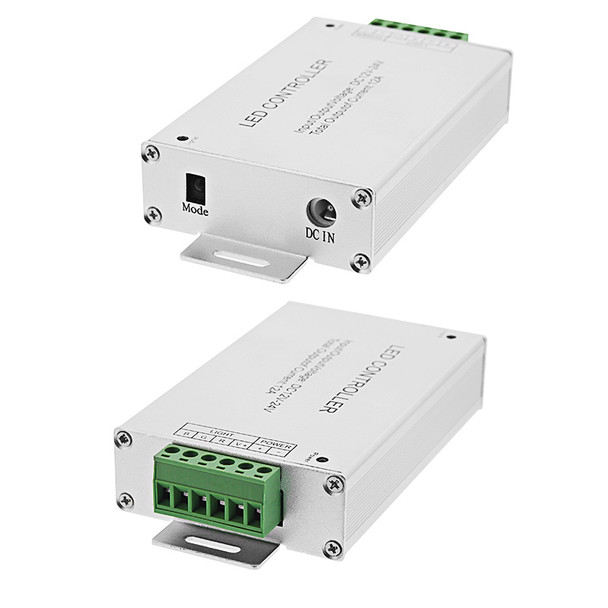

1. Model: VL-CON-RF4B-3CH-12V
2. Working temperature:-20-60°C
3.Supply voltage :DC12V-24V
4. Size : L130 x W64 x H24mm
5. Weight: 185g
6. Output: Three CMOS drain-open output
7. Connecting Mode : Common anode
8. Rated load current: 4A per channel.
9. Remote control, Max distance: 100M (open space)
Control method:
RF 4 buttons control.
Button "A": Mode change
Button "B": To speed up color changing
Button "C": To speed down color changing
Button "D": On/off switch
Mode |
Remarks |
|
1 |
Static Red |
|
2 |
Static Green |
|
3 |
Static Yellow |
|
4 |
Static Blue |
|
5 |
Static Pink |
|
6 |
Static Cyan |
|
7 |
Static White (Cool White) |
|
8 |
3 color jump change |
B and C buttons to change speed |
9 |
7 color jump change |
B and C buttons to change speed |
10 |
3 color step change |
B and C buttons to change speed |
11 |
7 color step change |
B and C buttons to change speed |
1. Only power with 12VDC Power Supply and connect to 12 Volt Light Strips or unit will be damaged. Our C
2. Wireless controller uses one 23A, 12V battery.
3. Connect according to the above drawing and note that the Green Connectors can be unplugged from the unit.
4. Red LED will come on when unit is receiving power, Green LED will flash when RF signal is received from handheld transmitter.
5. UP and DOWN buttons will only work when unit is in one of the four color-changing (dynamic) modes.
6. Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the Strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 30 meters of additional LED Strips.
7. Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
