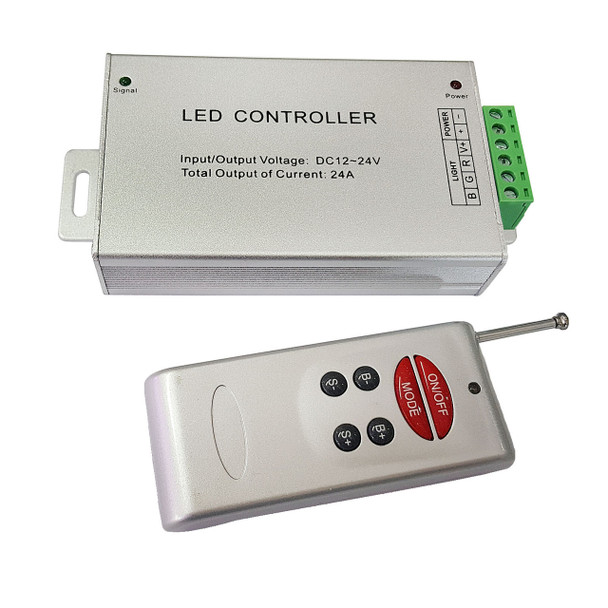

LED Controller 6 Key RF Remote 3 Channel RGB Aluminum Casing REDUCED

  • Image 1
  • Image 2
  • Image 3
  • Image 4
RRP:
$25.00
Your Price:
$15.50 (You save $9.50)
SKU:
VL-CON-RF6A-3CH-12V-Reduced
Shipping:
Calculated at checkout
Current Stock:
9


Product Description

4-key-rgb-controller-2.jpg 4-key-rgb-controller.jpg

Application:

Control flexible and rigid LED Lights. Suitable for 5050, 3528 or 335 LED strips and bars. RGB or 3 x Single colors.

Specifications:

1. Model: VL-CON-RF4B-3CH-12V

2. Working temperature:-20-60°C

3.Supply voltage :DC12V-24V

4. Size : L130 x W64 x H24mm

5. Weight: 185g

6. Output: Three CMOS drain-open output

7. Connecting Mode : Common anode

8. Rated load current: 4A per channel.

9. Remote control, Max distance: 100M (open space)

Control method:



NOTES:

1. Only power with 12VDC-24V Power Supply and connect to 12,24 Volt Light Strips or unit will be damaged. Our C
2. Wireless controller uses one 23A, 12V battery.
3. Connect according to the above drawing and note that the Green Connectors can be unplugged from the unit.
4. Red LED will come on when unit is receiving power, Green LED will flash when RF signal is received from handheld transmitter.
5. UP and DOWN buttons will only work when unit is in one of the four color-changing (dynamic) modes.
6. Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the Strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 30 meters of additional LED Strips.
7. Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.




Warranty Information

1 Year
