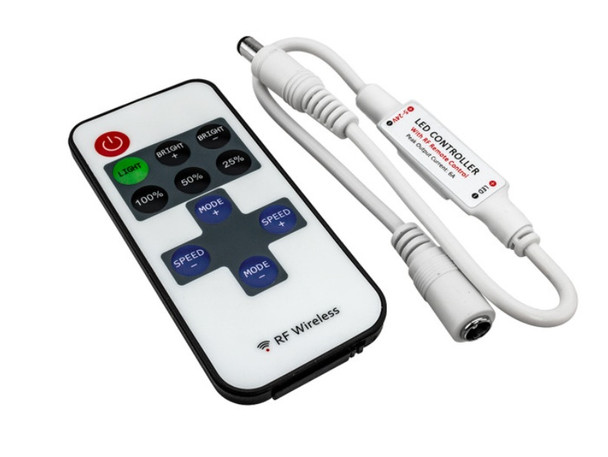

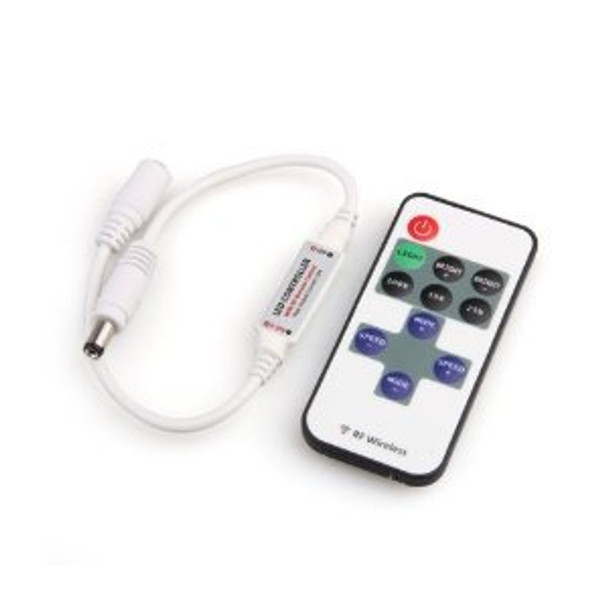

Mini LED Dimmer with RF Remote

The Universal Single-Color Mini LED Dimmer with RF remote offers smooth brightness control for most 5V–24V DC LED products. Using advanced PWM (Pulse Width Modulation) technology, it dims LEDs from 15% to 100%, ensuring flicker-free performance and energy efficiency.

Enjoy flexible lighting effects with 8 dynamic modes and adjustable speed control. The compact design makes installation easy, while the included RF remote provides convenient wireless control with a range of over 15 meters in open air.

Ideal for under-cabinet lighting, strip lighting, accent lighting, and more — this dimmer delivers reliable performance in a tiny package.

Features:

Works with 5V–24V DC LED products (single-color)

15%–100% dimming range with PWM control

8 dynamic lighting modes with speed adjustment

Power cycle memory retains last mode used

Remote range: >15m (open air)

1-to-1 remote pairing for stable operation

Compact size: L35 × W15 × H4.5 mm

Battery for RF remote included

Specifications:

Working Temperature: -20°C to +60°C

Supply Voltage: DC5–24V

Output Channels: 1 (common anode)

Max Load Current: 6A

Max Load Power:
• 5V ≤ 30W
• 12V ≤ 72W
• 24V ≤ 144W

Static Power Consumption: <0.5W
