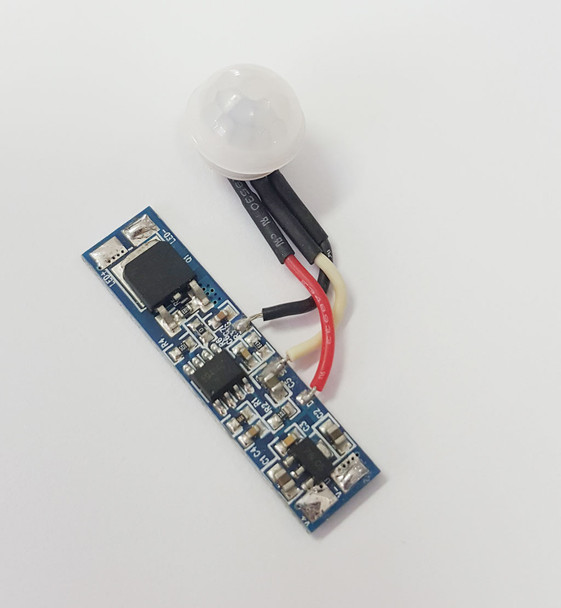

PIR / Motion Sensor Switch Adjustable Time Settings

The PIR Sensor Switch is designed for aluminium LED profiles with an inner height of 6–20 mm. It provides hands-free ON/OFF control via motion detection and is ideal for kitchen cabinets, closets, stair lighting, display units, hotels, and other hard-to-reach/shaded spots.

Installation note: This sensor requires drilling a hole in the plastic diffuser (matching the sensor head width) so the sensor can mount through the diffuser and sit flush. The controller body sits inside the profile.

Features

Motion-activated ON/OFF with adjustable off-delay

Fits profiles with 6–20 mm inner height

Compact, easy through-diffuser mount

Energy-saving automation for furniture and architectural lighting

Specifications

Width (sensor head): 10 mm (hole required in diffuser)

Length: 52 mm

Voltage: 12–24V DC

Max Current: 8 A

Load Capacity: 96 W (12 V) / 192 W (24 V)

Detection Distance: ~2 m

Standby Time (Off-Delay): Adjustable ~6–70 s
