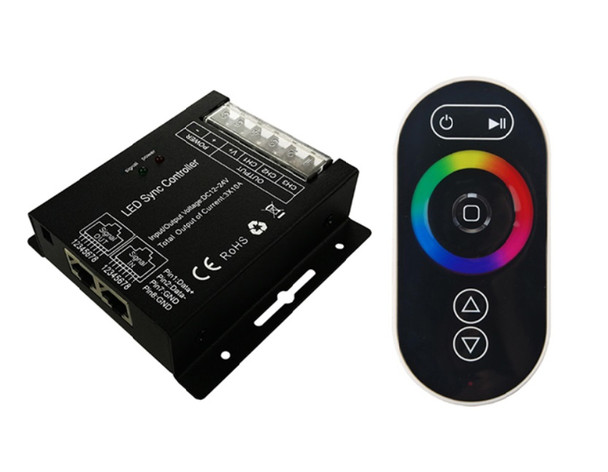

RGB LED Sync Controller

Use this RGB LED controller with a wireless touch-color RF remote to control your RGB LED light strips

Control your light strip from up to 20m away with the completely touch-activated remote, which features a color wheel for direct, fine-tuned color selection. The remote also includes power, pause, brightness control, dynamic mode selection, and speed-selection touch buttons.

Features:

• Dynamic and Static Modes: 10 dynamic color-changing modes and adjustable speed and brightness levels. Static color and white modes with adjustable brightness levels.
• Wireless Remote Control: Operate your light strip from up to 20m away. The remote is touch-activated and features a color wheel for precise color selection.
• Power-Cycle Mode Retention: Ensures your light strip returns to the last selected mode before it was powered off.
• High Load Capacity: The polarity-sensitive controller has a maximum load capacity of 8 amps per red, green, or blue channel. Compatible with LED light strips operating within a 12-24V DC range.
• Power and Signal Indicators: Red and green lights on the controller indicate power and signal status from the RF remote.
• Easy Installation: Screw slots on the controller allow for permanent mounting.
• Remote Specifications: Available in black and requires 3 AAA batteries (not included).

Controller

Working temperature -20-60℃

Supply voltage DC12V-24V

Connecting mode common anode

External dimension L91*W88*H24 mm

Net weight 290g

Gross weight 320g

Remote distance Up to 20M

RF frequency 433.92Mhz

Output 3 channels  ≤10A(each channel)

Max. Output power 12V:<360W, 24V:<720W

Remote control

Working temperature -20℃~60℃

Supply voltage DC4.5V（AAA*3pcs）

Working current <30mA

Net weight 90g

RF frequency 433.92MHz

External dimension L113*W55*H22 mm

RF distance ≤20m
