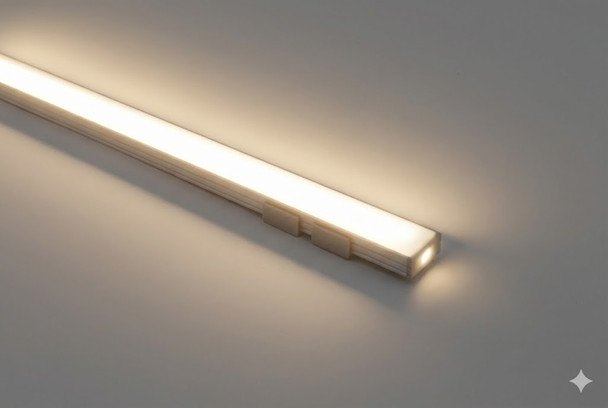

Volka ReadyLine™ PA07 – Dotless Surface Mount LED Channel Kit (Plug & Play)

The Volka ReadyLine™ PA07 is a complete, pre-assembled surface mounted LED lighting system designed for clean architectural installation and seamless illumination.

Each kit is hand assembled in our Australian warehouse and professionally tested prior to dispatch. Every system is driver-matched, soldered, and quality checked to ensure consistent performance and long-term reliability.

This is a ready-to-install solution — not a collection of loose components.

Australian Hand Assembled

Every ReadyLine™ kit is:

• Assembled by hand in Australia
• Professionally soldered and finished
• Correctly driver matched to suit the selected length
• Fully tested before shipping

This ensures a properly configured lighting system that is ready for immediate installation.

Included LED Strip – SmoothLine™ Dotless COB

This kit includes our:

SmoothLine™ Single Colour LED Strip
https://ledstore.volkalighting.com.au/smoothline-single-colour-s-12-24v-10-14-4w-non-waterproof/

Specifications:

• 12V DC
• 10W per metre
• Approx. 1500 lumens per metre
• Dotless COB technology for continuous light output

The SmoothLine™ strip produces a uniform, seamless line of light with no visible LED spotting, even in shallow profiles such as the PA07. It is suitable for cabinetry, shelving, mirrors, wardrobes, and general architectural applications.

Included Profile – PA07 Surface Mounted Channel

PA07 Surface Mounted LED Profile
https://ledstore.volkalighting.com.au/surface-mounted-led-profile-silver-white-black-pa07/

The PA07 is a slim aluminium surface-mounted profile available in:

• Silver
• White
• Black

It provides a clean architectural finish while ensuring proper heat dissipation for optimal LED performance.

Length Options and Free Custom Cutting

Kits are supplied in 50cm increments.

Select the size bracket you fall within (for example 1m, 1.5m, 2m etc.).
At checkout, specify the exact length required and we will cut the aluminium profile to size at no additional charge.

This allows accurate installation without the need for onsite cutting.

Lead length from channel to driver is 150cm as standard.

What Is Included

• PA07 aluminium surface mounted channel
• Pre-installed SmoothLine™ 12V 10W/m dotless LED strip
• Appropriately matched LED driver
• 150cm lead
• Mounting clips (screw fixed)
• End caps installed

Installation process:

1. Screw mounting clips into the surface

2. Snap channel into clips

3. Connect driver to power

Available Light Colours

• Warm White
• Natural White
• Cool White

Full Customisation Available

If this standard configuration does not suit your project, we offer full customisation.

We can supply:

• Longer continuous lengths
• Alternative aluminium channels
• Different LED strips (higher output, lower output, different voltages)
• Waterproof LED options
• Custom lead lengths
• Different drivers and dimming configurations
• Black or white cabling
• Commercial-scale builds

If you require something specific, simply contact us. We manufacture and assemble in-house and can configure systems to suit virtually any application.
