The Mean Well PWM-200-12 is a high-power constant voltage LED driver with PWM output, engineered for smooth, flicker-free dimming of LED strips and lighting systems. With 0–100% dimming down to 0% output, high efficiency, and IP65 protection, it’s the ideal solution for large-scale residential, commercial, and outdoor LED installations.
✔ 12V DC constant voltage PWM output – stable and even brightness
✔ Dims smoothly from 100% down to 0%
✔ High efficiency up to 90.5%

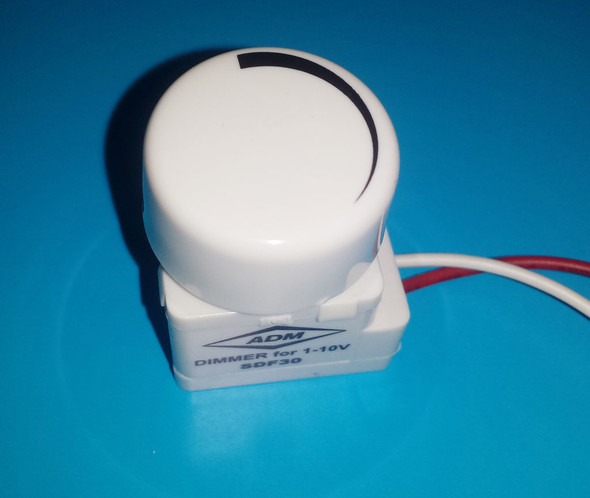

✔ 0–100% dimming – compatible with 1–10V analogue dimmers
✔ Comprehensive protections: short circuit, overcurrent, overvoltage, overtemperature
✔ Durable IP65 enclosure – suitable for dry, damp, and wet locations
✔ PWM style output – ensures flicker-free dimming and consistent brightness
✔ Supplied with 1.8m flex & plug for easy installation
✔ Compact power design (195 × 68 × 39.5 mm)
✔ Certified to SAA / UL / CE / RoHS and international EMC standards
Specifications
-
Model: PWM-200-12
-
Output Voltage: 12V DC
-
Output Current: 16.7A
-
Output Power: 200W
-
Output Type: Constant voltage PWM style
-
Efficiency: Up to 90.5%
-
Dimming Range: 0–100% (only with 1–10V analogue dimmers)
-
Protections: Short circuit, overcurrent, overvoltage, overtemperature
-
IP Rating: IP65 (indoor/outdoor use)
-
Dimensions: 195 × 68 × 39.5 mm
-
Connection: 1.8m flex & plug
A high-capacity dimmable 24V 200W LED driver from Mean Well, delivering reliable, smooth dimming and efficiency for large LED lighting installations. Compatible with 1–10V dimmers.
