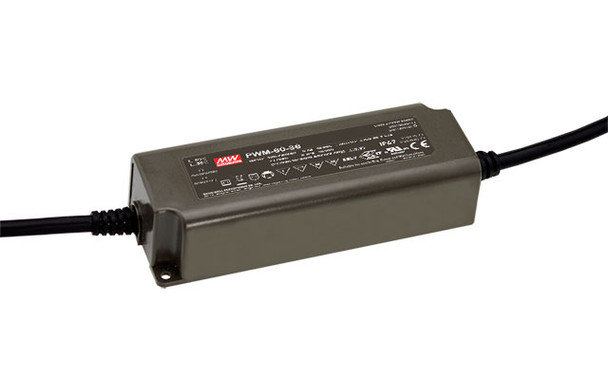

Mean Well PWM-60 Power Supply IP67 12V

The Mean Well PWM-60-12 is a high-quality constant voltage LED driver with PWM output, ensuring smooth dimming and even brightness across LED strips and lighting systems. With active PFC, wide AC input range, and IP65 protection, it is built for long-lasting reliability in both residential and commercial applications.

✔ 12V DC constant voltage PWM output – stable, flicker-free dimming
✔ Universal AC input (up to 350VAC) with active PFC function
✔ High efficiency up to 90%
✔ 0–100% dimming – compatible with 1–10V analogue dimmers
✔ Comprehensive protections: short circuit, overcurrent, overvoltage, overtemperature
✔ Durable IP65 enclosure – suitable for dry, damp, and wet locations
✔ PWM style output – ensures even dimming of LED strips
✔ Supplied with 1.8m flex & plug for easy installation
✔ Certified to SAA / UL / CE / RoHS and international EMC standards

Specifications

Model: PWM-60-12

Output Voltage: 12V DC

Output Current: 5A

Output Power: 60W

Output Type: Constant voltage PWM style

Input Voltage: 100–240V AC (up to 350VAC, 47–63Hz)

Input Current: 0.3A @ 230VAC / 0.25A @ 277VAC

Efficiency: Up to 90%

Dimming Range: 0–100% (only with 1–10V analogue dimmers)

Protections: Short circuit, overcurrent, overvoltage, overtemperature

IP Rating: IP65 (indoor/outdoor use)

Dimensions: 150 × 53 × 35 mm

Safety Compliance: EN55015, EN61000-3-2 Class C (≥60% load), EN61000-3-3

EMC Compliance: EN61000-4-2,3,4,5,6,8,11; EN61547 (light industry level, surge L–N: 2KV)

A premium dimmable 12V 60W LED driver from Mean Well, delivering smooth dimming and safe, efficient performance. Compatible with 1–10V dimmers.

View full product details on Mean Well site

 Installation with Mean Well Analogue 1-10V Dimming Switch
