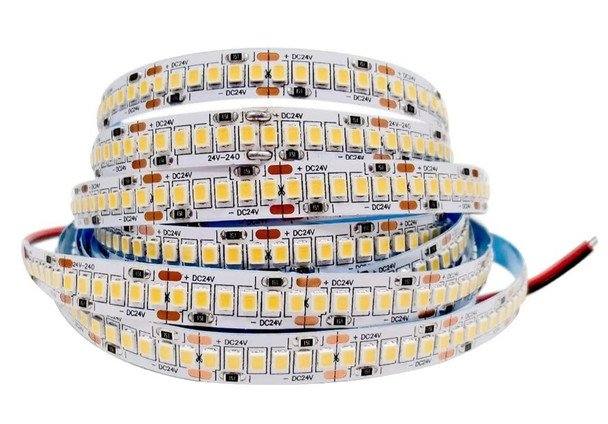

SMD 2835 (24V - 19.2W) 240 LEDs/m Non-Waterproof

The price is per 1 meter of LED strip. 1 quantity = 1 meter. Up to 30 meters available in a single reel.

High-Density SMD 2835 LED Strip (24 V – 19.2 W per m, 240 LEDs/m) — precise, uniform illumination on a slim 10 mm PCB. Ideal for under-cabinet, joinery, wardrobes, stairs, display, and architectural details.

Key Features

• High-density 240 LEDs per meter
• Cuttable every 6 LEDs (≈ 2.5 cm)
• Thin 10 mm PCB with 3M self-adhesive backing
• Uniform light with minimal dotting
• Optimised for 24 V long runs up to 14 m from one end

Available Colours

• Warm White 3000 K
• Natural White 4000 K
• Cool White 5000 K

Specifications

• LED Model: SMD 2835
• LEDs per Meter: 240 pcs
• Power Consumption: 19.2 W/m
• Input Voltage: DC 24 V
• Recommended Forward Current: 0.75 A/m
• CRI: 90+
• Viewing Angle: 180°
• Lifespan: > 50 000 hours
• Operating Temperature: −20 °C to +50 °C
• IP Rating: IP20 (non-waterproof)
• Mounting: 3M self-adhesive backing
• Warranty: 1 year

24 V Version (19.2 W per m)

• Dimensions: 10 mm (W) × 1.4 mm (H)
• PCB Thickness: 0.25 mm
• Cuttable every 6 LEDs (≈ 2.5 cm)
• Max single-end run: 14 m

Powering Longer Runs

• For runs longer than 14 m, power from both ends to maintain even brightness.
• When powered from both ends, this strip can reach approximately 14 m + 14 m + ≈ 3 m extra — giving up to ≈ 31 m total with consistent light.
• Use adequately sized cable to minimise voltage drop and ensure consistent light output.

Selecting the Right LED Driver

Use our Power Supply Calculator below to automatically find the correct driver for your strip length and wattage — no manual calculations needed.

Need Help or a Custom Setup?

We can solder custom wires directly to your LED strips, prepare pre-cut lengths to your measurements, and supply the correct power supply — fully tested and ready to install. We also offer complete ready-to-install kits that include LED strip + aluminium channel + controller + power supply, with the strip already professionally installed into the channel. Our team can handle all calculations and assembly for you — simply call us or get in touch online for quick assistance.
