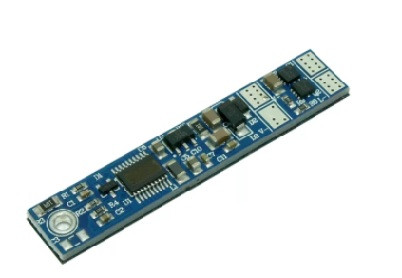

Aluminium LED Profile Touch Switch & Dimmer

Compact touch dimmer designed for integration inside aluminum LED profiles. Activated by touching any exposed part of the metal profile (not the plastic diffuser). Suitable for 12V or 24V DC LED strip systems.

Specifications:

• Input Voltage: 12–24 VDC

• Output Voltage: 12–24 VDC

• Max Load: 36W @ 12V / 72W @ 24V

• Input Current: 3A

• Dimming Control:

  • Tap (±2sec) = ON/OFF

  • Touch & hold = 6%–100% dimming

• Memory Function: Retains last brightness level after power loss

• Mounting Screw: M1.2 × 3 mm (Ø1.5 mm head)

• Drill Bit Required: 1.0 mm

• IP Rating: IP20

• Operating Temp: -20°C to +60°C

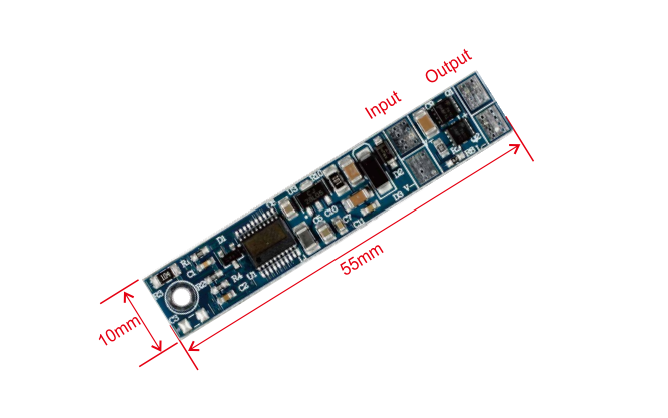

• Module Dimensions: 55 × 10 × 5 mm

Installation Notes:

• Drill a 1.0 mm pilot hole and install the included 1.5 mm screw by hand only — do not use power tools.

• The screw must make firm electrical contact with the aluminum profile for proper touch functionality. Loose or over-tapped threads can interrupt detection.

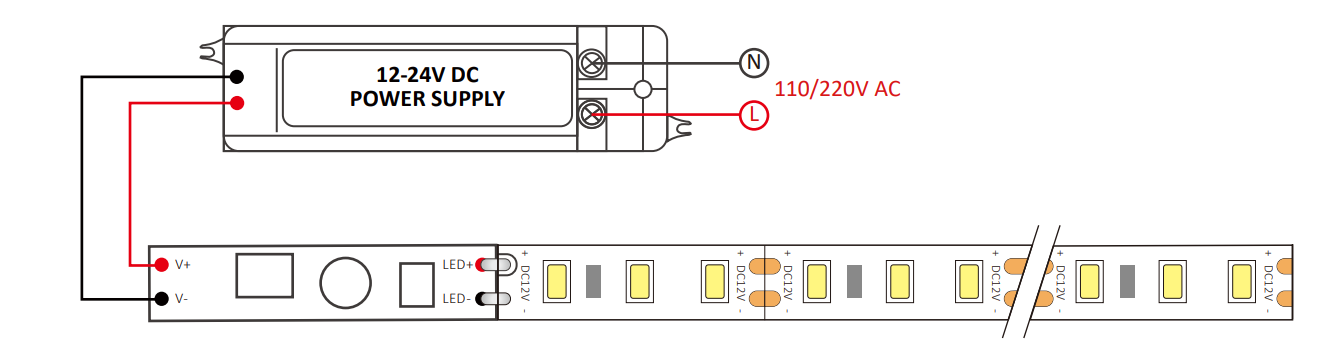

• Ensure the module is soldered correctly to the LED strip, with + and – aligned to the corresponding polarity. Reversed connections will prevent the sensor from working.
