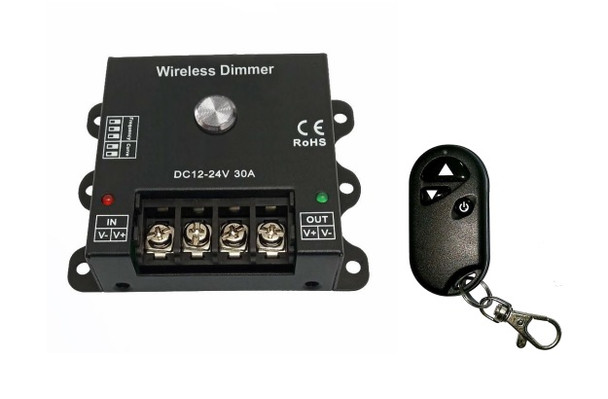

Frequency Adjustable Wireless Dimmer

This single-channel LED dimmer is designed for constant voltage single-color LED strips and modules. With support for up to 30A output current, it provides powerful dimming capability for large LED installations. The included RF remote control makes it easy to adjust brightness from a distance, while the compact design ensures simple integration into your setup.

✔ High Load Capacity – supports up to 30A output current (DC 12–24V)
✔ Single-Channel Output – designed for single-color LED strips
✔ RF Remote Control – 20m wireless range at 433.92 MHz
✔ Low Power Consumption – <1W static power use
✔ Compact Design – durable, space-saving enclosure
✔ Easy Installation – common anode connection mode

Controller Specifications

Working Temperature: -20℃ ~ +60℃

Supply Voltage: DC 12–24V

Output Channels: 1 channel (common anode)

Static Power Consumption: <1W

Output Current: ≤30A
(note: at PWM frequency >1kHz, maximum current reduces)

External Dimensions: 81.5 × 64 × 40 mm

Packing Size: 90 × 72 × 50 mm

Net Weight: 140g

Gross Weight: 195g

Remote Specifications:

Power Supply: 12V battery

Transmission Frequency: 433.92 MHz

Control Distance: ~20m

Emission Current: 30mA

A powerful, single-channel LED dimmer with remote control, ideal for high-capacity single-color LED strip installations requiring stable, long-range dimming.
