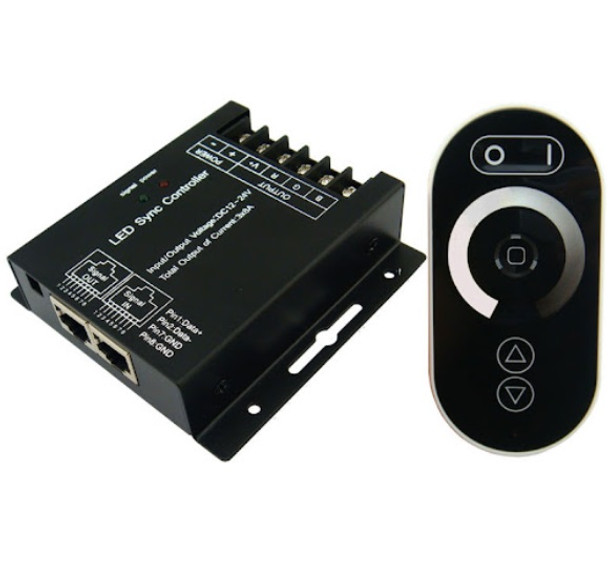

LED Sync Dimmer with Remote

(No reviews yet) Write a Review
SKU:
VL-HX-SZ600-DIM
Shipping:
Calculated at Checkout
  • LED Sync Dimmer with Remote
  • LED Sync Dimmer with Remote
$45.10
Frequently bought together:

Description

Easily control your LED light strips with this wireless RF remote and dimmer set. The touch-activated remote lets you adjust brightness, power, and modes from up to 20 meters away, while the controller supports high-capacity LED installations with 12–24V DC input.

Brightness Control – fine-tune your LED strips from soft glow to full brightness
Wireless RF Remote – operate from up to 20m away with touch-sensitive buttons
Mode Memory Retention – lights return to the last setting after power-off
High Load Capacity – supports 3 channels at up to 10A each (max 360W at 12V / 720W at 24V)
Easy Installation – controller includes screw slots for permanent mounting
Durable & Reliable – designed for long-term use in a wide temperature range
✔ Remote available in black (uses 3 × AAA batteries, not included)

Controller Specifications

Working Temperature: -20℃ ~ +60℃

Supply Voltage: DC 12–24V

Connection Mode: Common anode

Dimensions: 91 × 88 × 24 mm

Net Weight: 290g (320g gross)

RF Frequency: 433.92 MHz

Remote Distance: Up to 20m

Output Channels: 3 channels, ≤10A per channel

Max Output Power: 360W (12V) / 720W (24V)

Remote Specifications

Working Temperature: -20℃ ~ +60℃

Supply Voltage: DC 4.5V (3 × AAA batteries, not included)

Working Current: <30mA

RF Frequency: 433.92 MHz

RF Distance: ≤20m

Dimensions: 113 × 55 × 22 mm

Net Weight: 90g

A powerful and easy-to-use wireless dimming solution for 12–24V LED strips, combining long-range RF control, touch-sensitive operation, and high load capacity.

View AllClose

Warranty Information

1 Year
