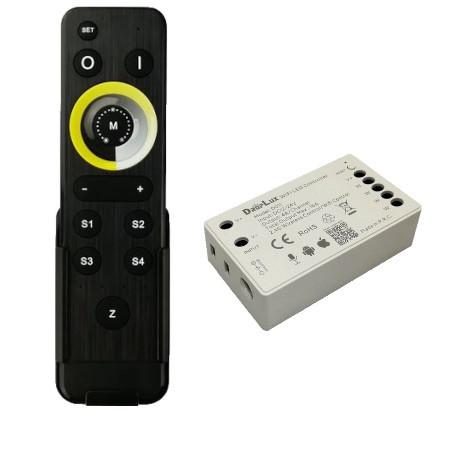

WiFi LED Light Dimmer with 4 zone Remote

This Wi-Fi LED dimmer is designed for controlling single-color constant voltage LED lights such as flexible LED strips, point light sources, LED modules, and LED strings. Using advanced PWM (Pulse Width Modulation) technology, it delivers smooth dimming and reliable performance.

Control your lights via the Tuya Smart app on iOS/Android or with the included RF remote control. The dimmer also features memory function, automatically restoring the last used mode after power-off.

✔ Wi-Fi control – works with the Tuya app (iOS/Android)
✔ Includes remote control (RFBT10) for convenient use
✔ PWM digital dimming – smooth brightness adjustment
✔ Memory function – restores last brightness/mode setting
✔ Short circuit protection for safe use
✔ Supports 12–24V DC constant voltage LED products

Specifications

Input Voltage: DC 12–24V

Output Channels: 4 channels (single color)

Max Load Current: 4A per channel

Max Load Power: 192W @ 12V / 384W @ 24V

Technology: PWM dimming

Control Methods: Tuya Smart app (Wi-Fi) + RF Remote (RFBT10)

Functions: Smooth dimming, memory function, short circuit protection

Application: For constant voltage LED strips, modules, strings, and point sources

DIM/CCT 2-in-1 RF Remote Control :

This 2-in-1 RF remote control is designed for use with Wi-Fi LED dimmers and compatible dimming drivers. It provides smooth brightness (DIM) and color temperature (CCT) adjustment, with support for up to 4 zones, making it ideal for flexible LED lighting setups.

✔ DIM + CCT Control – adjust brightness and color temperature easily
✔ RF 2.4GHz Wireless Control – stable, long-range operation (≤30m)
✔ 1024 Brightness Levels – ultra-precise dimming control
✔ 4-Zone Function – control zones individually or all together
✔ Scene Setting – store and recall customized lighting scenes
✔ Easy Operation – unique interface with indicator light feedback
✔ Compatible with HD / HC / QD / QC / DLC / DLS / DLK / T2 series dimming drivers

Remote Specifications

Size: 150 × 40 × 20 mm

Working Voltage: DC 3V (2 × AAA batteries, not included)

Working Temperature: -20℃ ~ +60℃

RF Frequency: 2.4GHz

Control Range: ≤30m

Brightness Adjustment: 1024 levels

Power Consumption:

Sleep: <25µA (<75µW)

Emission: <20mA (<60mW)

Weight: 90g

How to Use with Wi-Fi Wireless LED Dimmer

1. Power your LED setup – connect LED strip, dimmer, and power supply.
2. Set up Wi-Fi – ensure your controller is ready for pairing.
3. Download Tuya app – search and connect the dimmer via the app.
4. Pair remote – use RF control for convenient DIM/CCT adjustments.
5. Enjoy full control – adjust brightness, set color temperature, or manage multiple zones.

.
