Addressable Dotless Pixel IC LED Strip RGB 24V 19.2W/m IP20

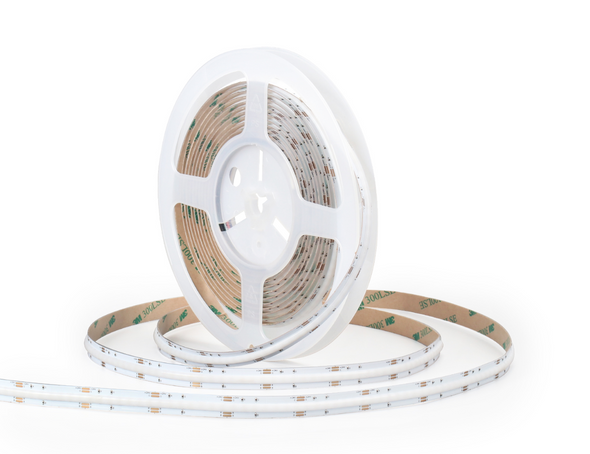

Price is per 1 metre. 1 qty = 1 metre. Supplied on a single continuous reel.

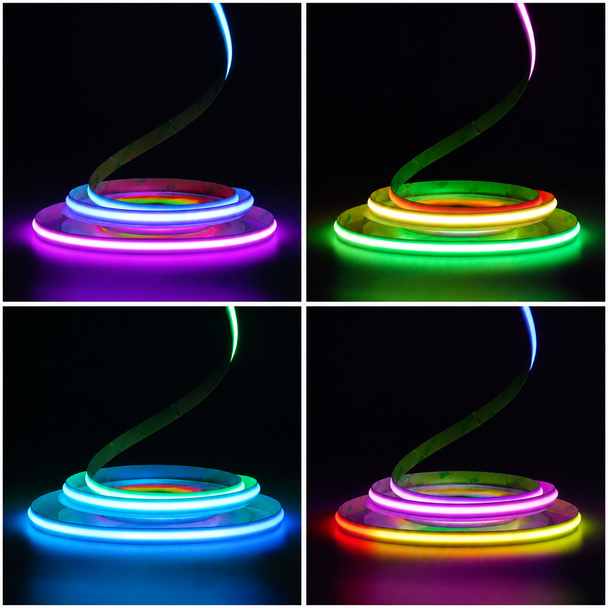

Dotless FCOB RGBIC Addressable LED Strip (24 V – 19.2 W/m, IP20) delivers a smooth, continuous dot-free light line with full individually addressable pixel control. Each segment is driven by an onboard IC, so the strip can run chasing, rainbow, gradient and dynamic colour effects across its length at the same time. Ideal for feature walls, ceilings, gaming and entertainment spaces, retail displays and architectural accent lighting where you want movement and colour, not just a single static shade.

Voltage / power

• 24 V version: 19.2 W/m (0.8 A/m), cuttable at marked cut points, max single-end run approx. 10 m before the data signal begins to drop off

Controller / dimming

This is an addressable (RGBIC) 24 V strip and requires a matching 24 V addressable / pixel controller (commonly listed as SPI, pixel, music or "magic" controllers). It will not work with a standard RGB controller. Data flows in one direction only, from the input (DIN) end towards the output (DOUT) end, so connect your controller at the marked input end.

Specifications

• LED modelFCOB RGBIC (dotless, addressable)
• VoltageDC 24 V
• Power19.2 W/m
• Current0.8 A/m
• IC typeAddressable RGBIC [CONFIRM]
• Pixels per metre[CONFIRM]
• Cut length[CONFIRM]
• Max single-end runapprox. 10 m
• Beam angle180°
• IP ratingIP20 (non-waterproof)
• Operating temp−20 °C to +50 °C
• Adhesive3M 300LSE tape on the back of the strip
• Warranty1 year

Powering longer runs

• Power injection: for longer runs, feed 24 V to both ends (or inject power at intervals) to keep brightness and colour consistent along the strip.
• Data direction: the data signal only travels one way. Keep the controller at the input (DIN) end so the effects run in the correct order.

Selecting the right power supply

Use our calculator to select the correct 24 V driver for your strip length and wattage. At 19.2 W/m, allow roughly 192 W for a 10 m run, plus headroom.

Not sure what you need?

If you are unsure which addressable controller or power supply suits your project, our team is here to help. We will take the time to understand your application and make sure you get exactly what you need, no guesswork. We can recommend the correct products, prepare pre-cut lengths, solder custom wires, or supply a complete ready-to-install kit with aluminium profile and accessories.
